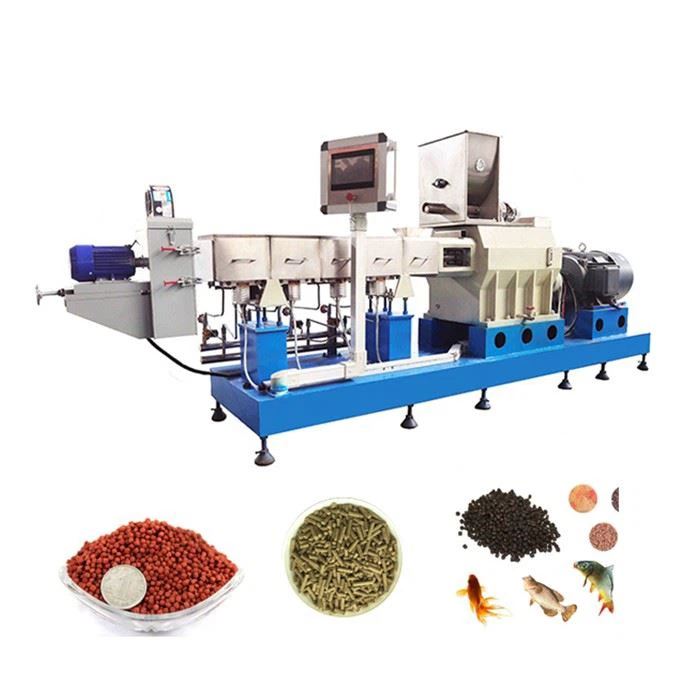

Floating Fish Food Pellet Extruder Machine



Our double screw can not only produce floating fish feed, sinking fish feed, but also can produce slow sinking fish feed. Particle size of 0.5mm-20mm and so on. We can customize different particle sizes according to your specific requirements.

1. Typical raw materials used in fish feed processing include grain meal, meat meal, bone meal, fresh meat and minerals and vitamins, etc.

2. After the dry material enters the pre-conditioner, it is precured with steam. Ensure proper mixing of steam, moisture and ingredients by adjusting the angle of the paddles.

3. The partially cooked raw material is then fed into the twin-screw extruder barrel. High temperature, high pressure and high shear to achieve optimal starch gelatinization without compromising food quality.

4. The pellets are extruded through the extruder die. They are then placed in a dryer, which reduces moisture (usually between 8% and 10%) and seasons the product before cooling and packaging

DSE - 65	74 kw	52 kw	100-150 kg per hour	17x1.3x2.2(m)
DSE - 70/75	105 kw	75 kw	200-250 kg per hour 250-350 kg per hour	20x1.5x2.2(m)
DSE - 85	205kw	150 kw	350-500 kg per hour	30x1.5x2.6(m)
DSE - 95	165kw	90kw	1000-1500 kg per hour	40x3.5x4.5(m)
DSE - 132	280kw	132kw	3000-3500 kg per hour	45x4.5x6(m)



1. The motor of our extruder is Siemens famous brand with stable performance.

2. The raw material of the fish feed machine is made of stainless steel.

3. Our automatic fish feed machine is controlled by frequency converter, which is easy and convenient to operate.

4. Our factory will send our engineer to your factory to guide the installation and use of the machine.

5. The fish feed processing line has 12 months (1 year) quality assurance.

6. The fully automatic fish feed pellet machine is multi-functional. Various types of fish feeds and pellet sizes can be manufactured by changing die heads and molds.

















1. High-strength cabinet, good stability

2. The screw material is alloy material, twin screws, easy to clean

3. Rotary cutting adopts straight cutting, which makes it easy to adjust

4. Siemens main motor, good quality, and long service life



















1. All electrical components of the machine come from ABB or Schneider, and it is easy to find substitutes in the local market;

2. The PLC and touch screen adopt Siemens, which makes the operation easier and reduces labor costs;

3. When a fault occurs, relevant information will be displayed on the touch screen, which is convenient for finding and solving problems in time;

4. There are three protection devices to ensure the safety of the machine and the operator: overcurrent protector, overvoltage protector, and overheat protector;

5. The machine cover, mesh belt, and parts in contact with materials or finished products are all made of 304 stainless steel to ensure product quality.





Pre-sale service

* Support 24 hours a day consultation.



After-sales service

*1-year machine quality guarantee

• Den indvendig pakke is plast film, udenfor er a træ eller krydsfiner kasse(baseret på kunderne' behov).
